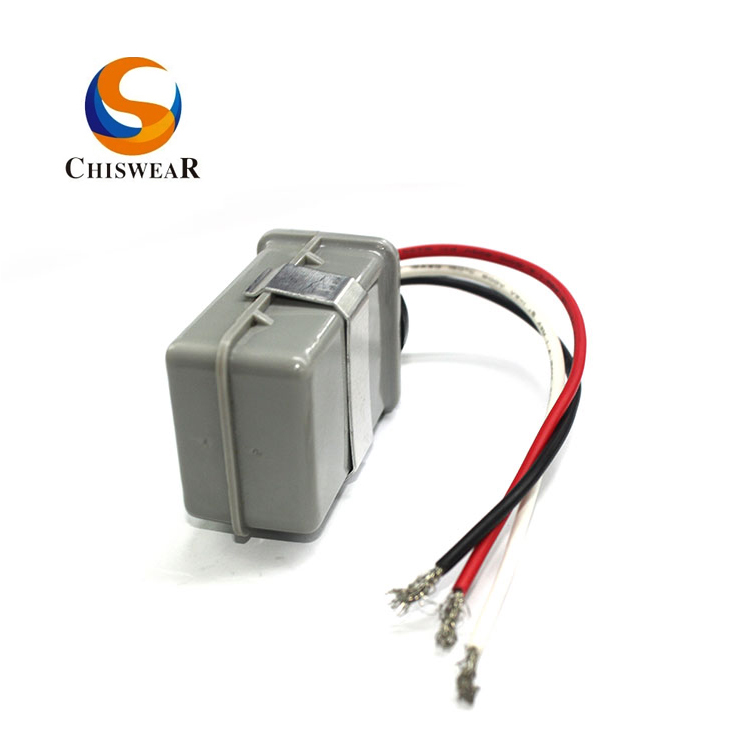

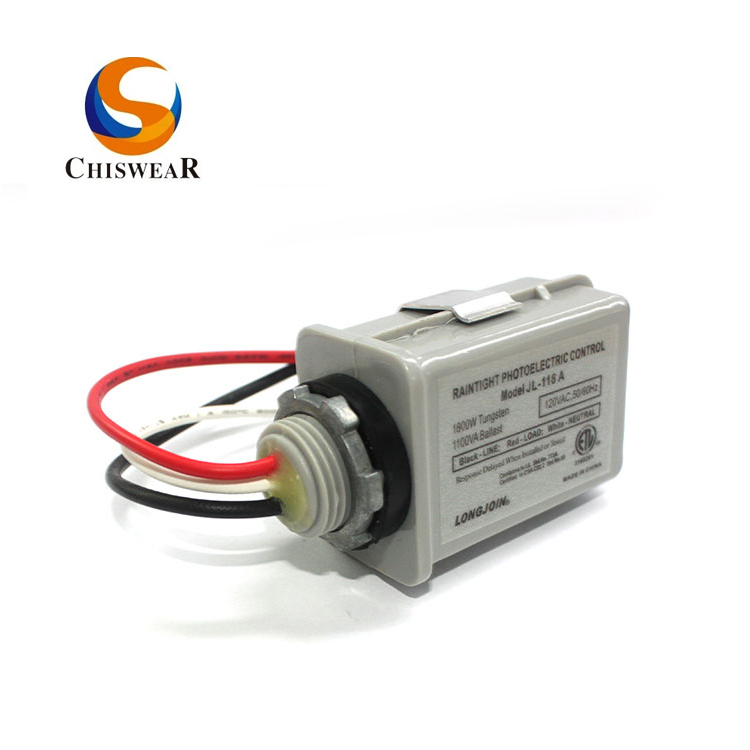

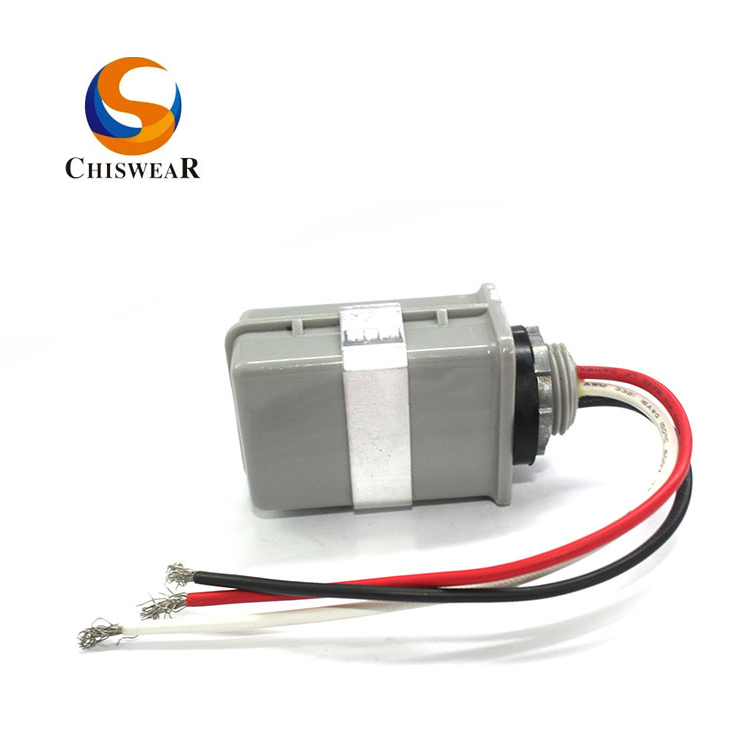

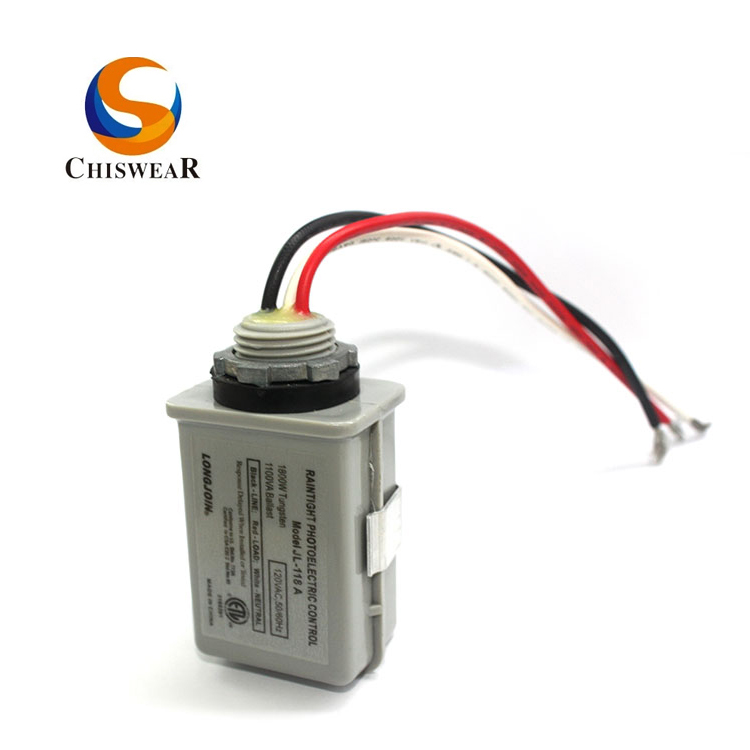

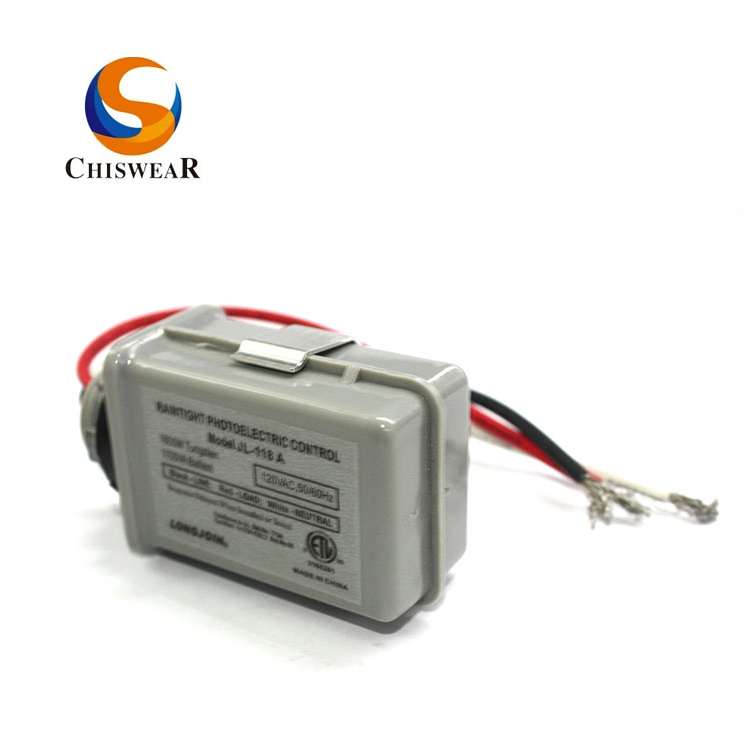

Outdoor Stem Mounted Photocell Switch JL-118A

Short Description:

1. Product Model : JL-118A

2. On / OFF Lux Level: 10-20Lx,30-60Lx

3. IP Rating : IP54

5. Compliant Standard: CE,ROHS,UL


Product Description

Product Specification

Get Detailed Prices

Product Tags

The photoelectric switch JL-118 Series is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.

Feature

1. Designed with bimetal thermal Structure work theory

2. 30 seconds Time Delay for easy-to-test and Avoid sudden accidents(spotlight or lightning) affecting normal lighting at night .

3.Wide voltage range for customer applications under almost power supplies.

4. Optional Accessories:

1)add swivel head;

2) customized Leads length in inch


  • Previous:
  • Next:

  • Product Model

    JL-118A

    JL-118B

    Rated Voltage

    100-120VAC

    200-240VQvAC

    Applicable Voltage Range

    -

    Rated Frequency

    50/60Hz

    Rated Loading

    Power Consumption

    1.5VA

    On/Off Level

    10-20Lx on(Dusk)
    30-60 off(Dawn)

    Ambient Temperature

    -40℃-+70℃

    Related Humidity

    99%

    Body Meas.

    41(Wide)*32(depth)*72(height)mm

    Swivel Meas

    65(L)*35(Dia.Max.)mm;180°

    Lead Length

    150MM or Customer Request

    Weight Approx

    55g(Body);20g(Swivel)
