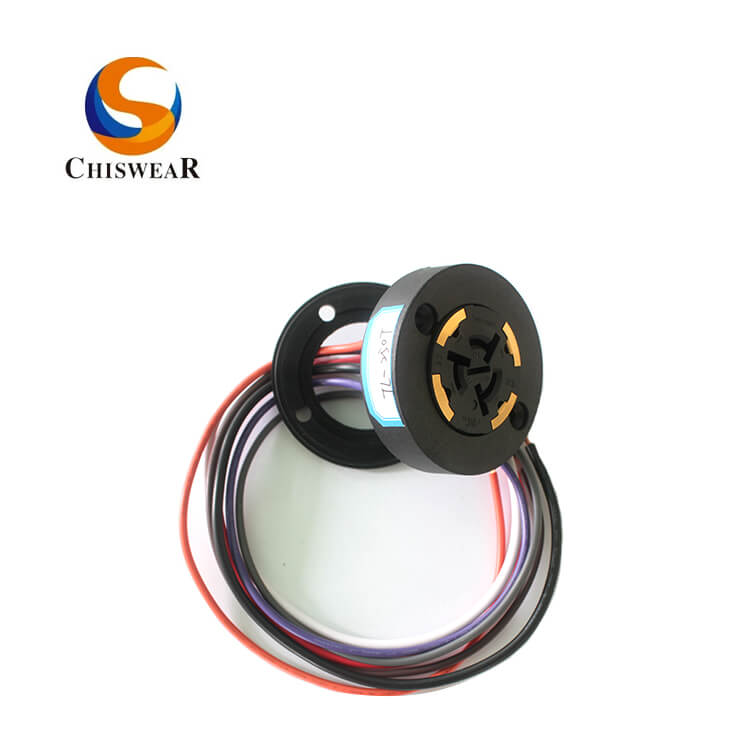

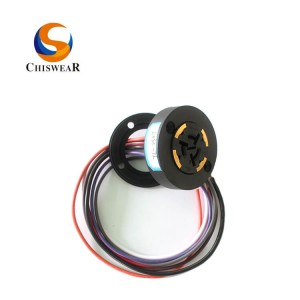

7 PIN Photocontrol Receptacle JL-250T

Short Description:

1. Product Model: JL-250T
2. Rated Voltage: 0-480VAC
3. Flammability Rating: UL94-0
4. Leads Gauge: #14, #18
5. Compliant Standard: ANSI C136.41, CE, ROHS, UL


Product Description

Product Specification

Get Detailed Prices

Product Tags

The entire JL-250T series twist-lock receptacles were designed for the lanterns those intended to have an ANSI C136.10-2006 receptacle to fit a twist-lock photocontrol.

1. ANSI C136.41-2013 standard to allow a LED lamp multi-controlled through the receptacle and obtained cRUus certificates under UL file E188110.

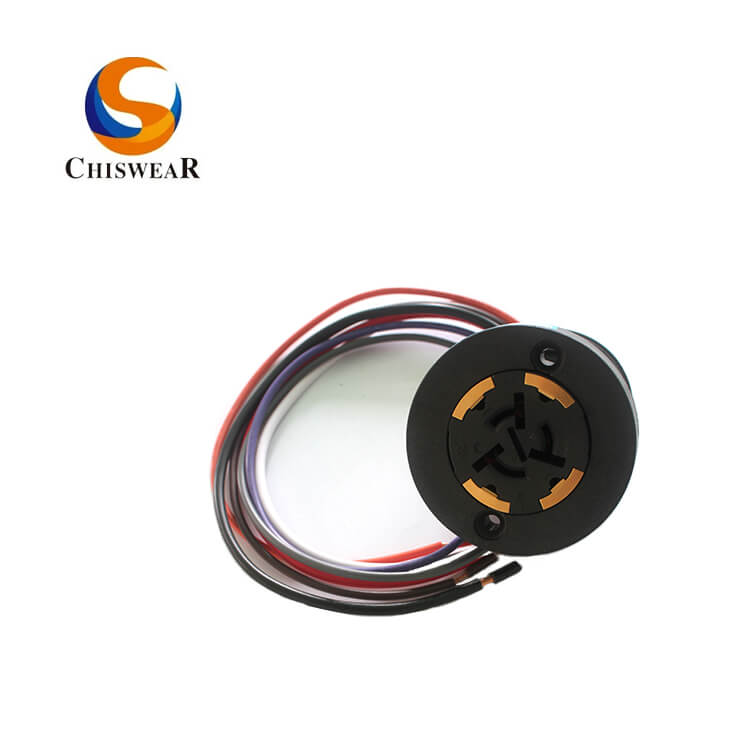

2. This item JL-250T1412 offers 4 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers 4 corresponding wires at rear back for signal connection.

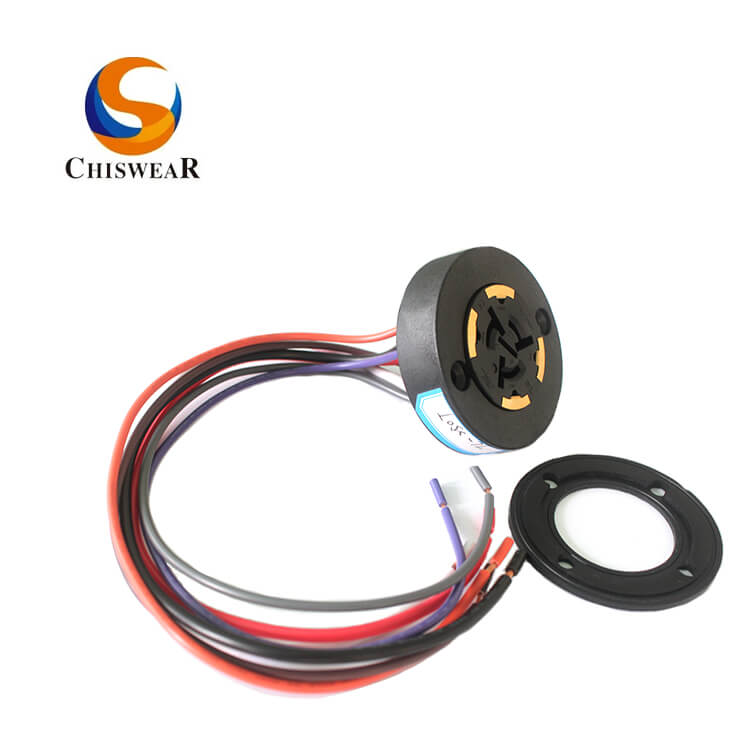

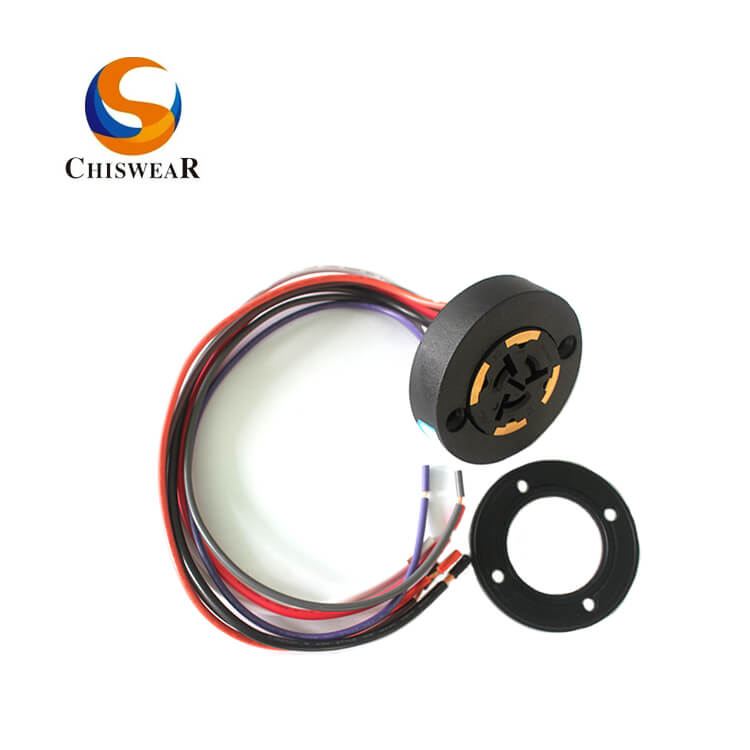

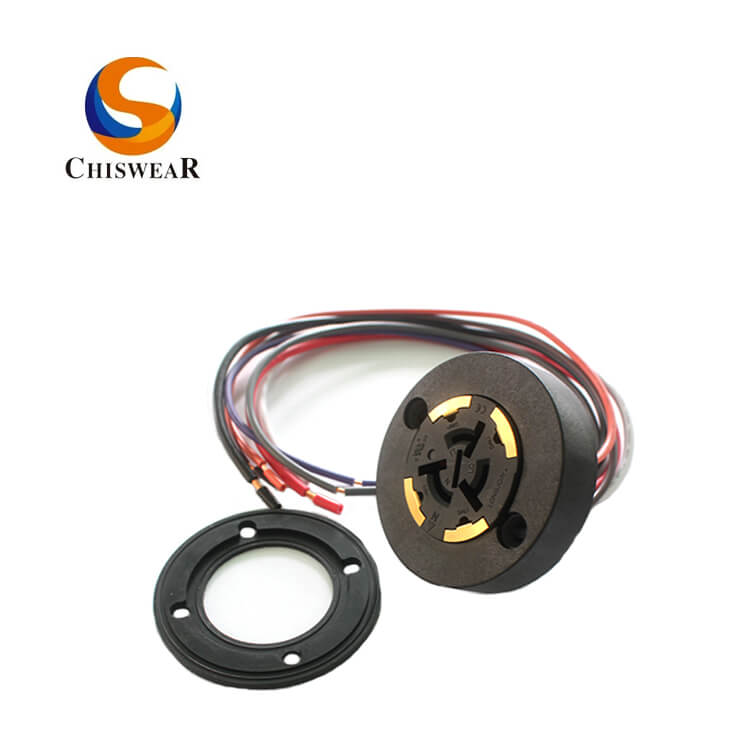

3. 360 degree rotation limiting feature to conform ANSIC136.10-2010 requirements. After simply fit its Rear Seat onto a lamp housing with 2 screws, the assembled receptacle body can be handy snapped on the Seat for mechanical installation completed. Rotation will be held during photocontrol installation or removal by pressure applied vertically.
This item has multiple gaskets built-in already for IP65 protection.


  • Previous:
  • Next:

  • Product Model

    JL-250T1412

    Power Volt Range

    0~480VAC

    Rated Frequency

    50/60Hz

    Power Loading

    15A max. / AWG#16: 10A max.

    Signal Loading

    30VDC, 0.25A max.

    Ambient Temperature External*

    -40℃ ~ +70℃

    Material

    Receptacle

    UV stabilized Polycarbonate (UL94 5VA)

    Power Contact

    Solid Brass

    Signal Contact

    Nickel plated Phosphor Bronze, Gold plated

    Gasket

    Thermal Elastromer (UL94 V-0)

    Power Lead



    Signal Lead



    Leads

    12″

    Overall Dimensions (mm)

     65Dia.x 38
