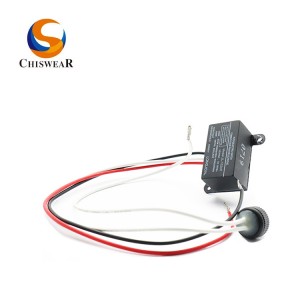

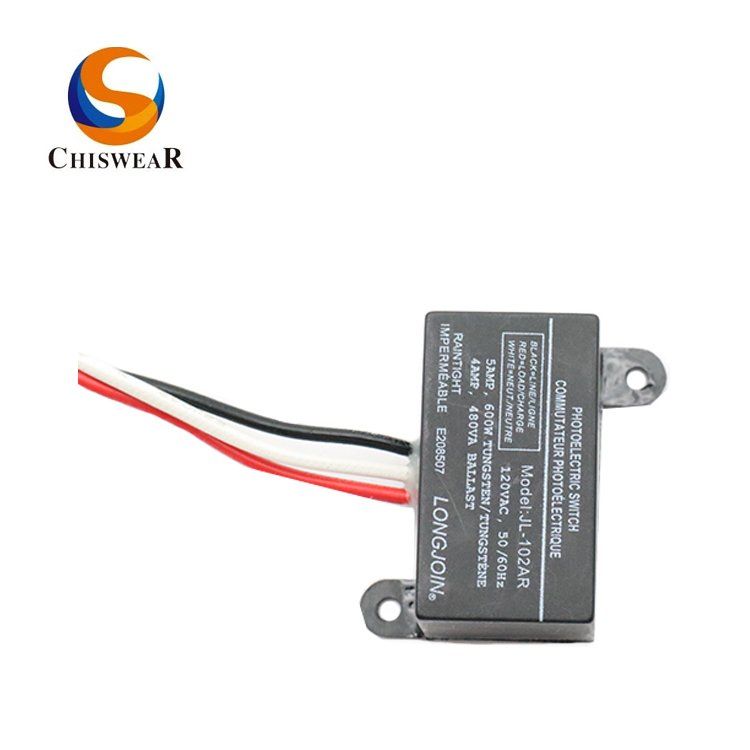

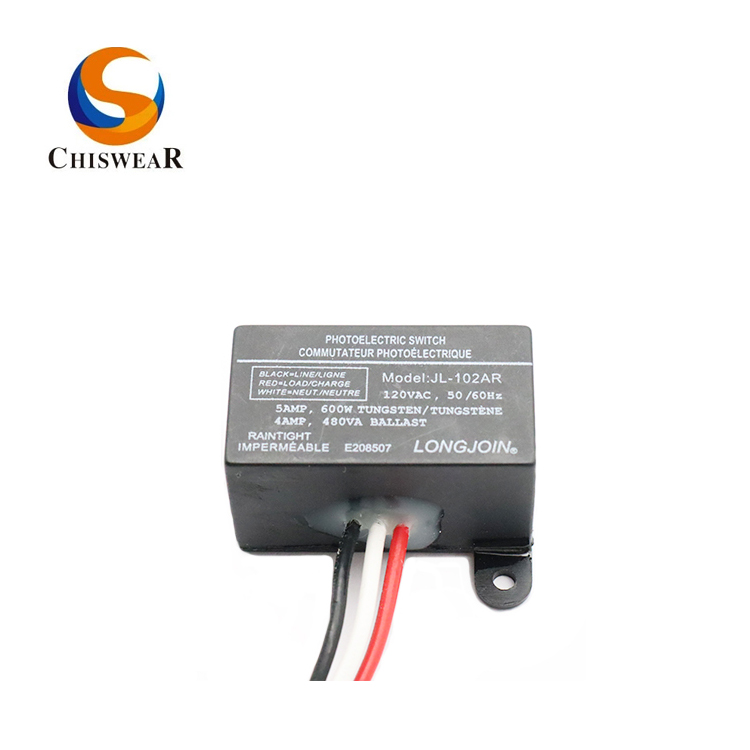

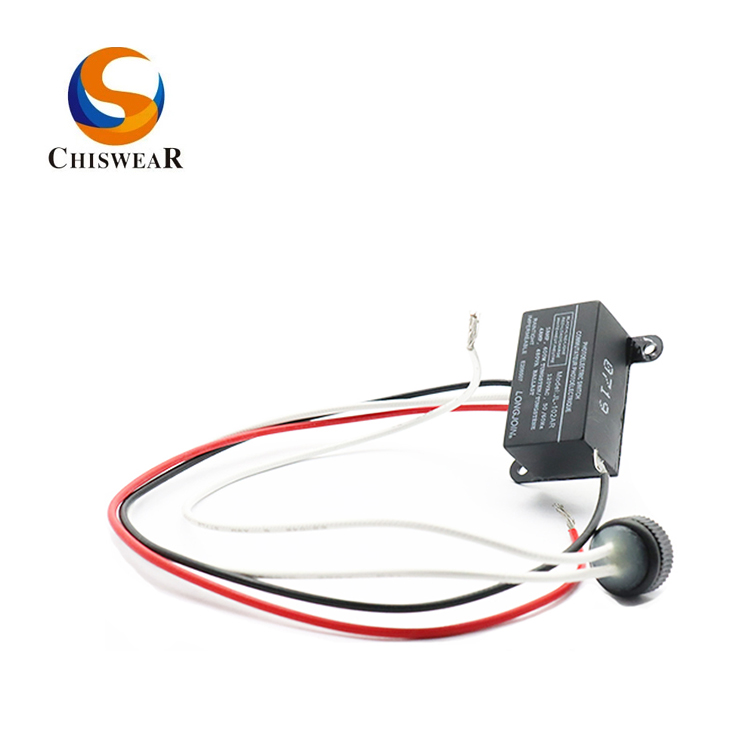

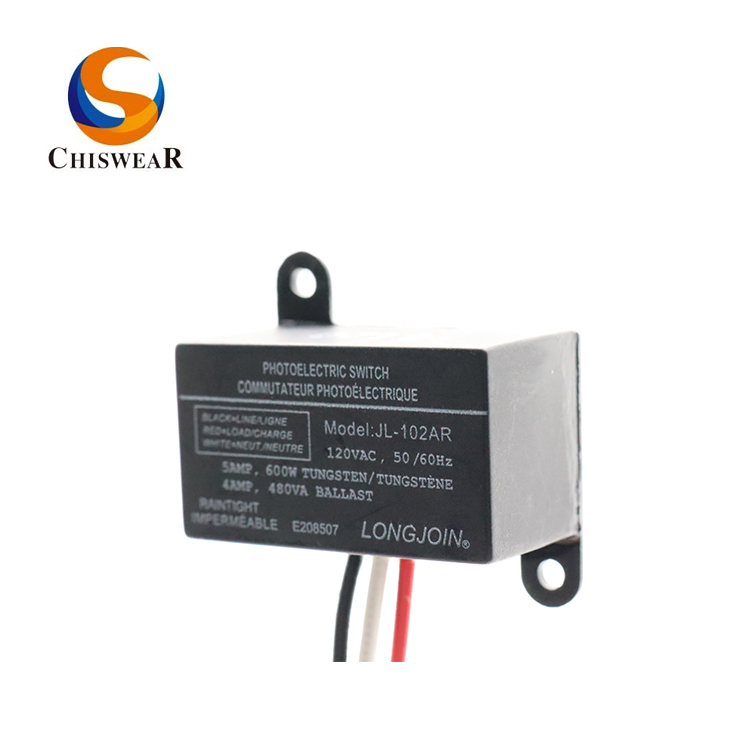

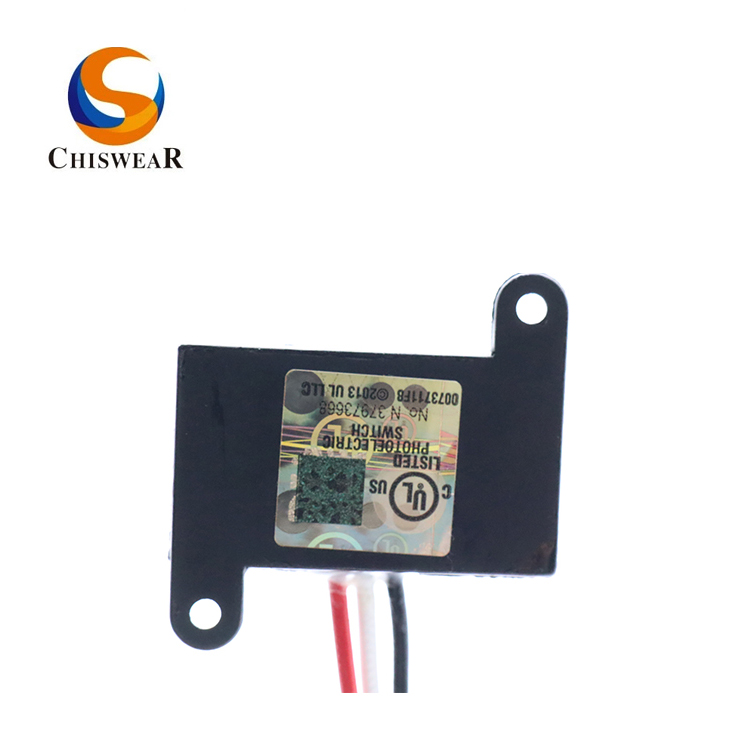

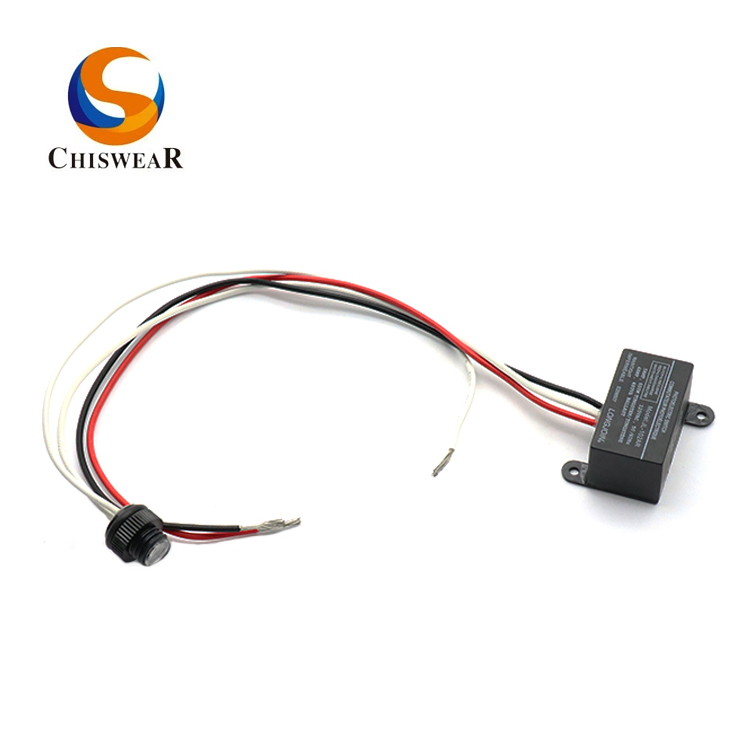

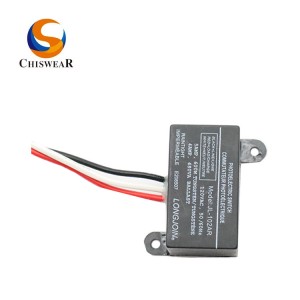

Outdoor Wall Pack Wiring Mounted 120V Mini Photocell Light Switch JL-102AR

Short Description:

. Product Model : JL-102AR

2. Rated Voltage : 240 VAC

3. On / OFF Lux Level : 10-20 Lx on  30-60 Lx off

4. IP Rating: IP54

5. Compliant Standard: CE,ROHS,UL


Product Detail

Video

Product Specification

Get Detailed Prices

Product Tags

The photo electric switch JL-101 series is applicable to control the street lighting, garden lighting, passage lighting and barn lighting automatically in accordance with the ambient natural lighting level.

Feature
1. 3-10s time delay.
2.  Convenient and easy to install.
3.  Standard Accessories: aluminum wall plated, waterproof Cap (Optional )


  • Previous:
  • Next:

  • Product Model JL-102AR JL-101BR
    Rated Voltage 120VAC 240VAC
    Rated Frequency 50-60Hz
    Rated Loading  150W Tungsten 100VA Ballast
    Leads Gauge AWG#18
    Related Humidity -40℃-70℃
    Power Consumption 1.5W max
    Operate level 10-20 Lx on30-60 Lx off
    Overall Dimensions(mm) 35(L)*19.5(W)*20(H)
    Lead lengths 7 inch or Customer request;
