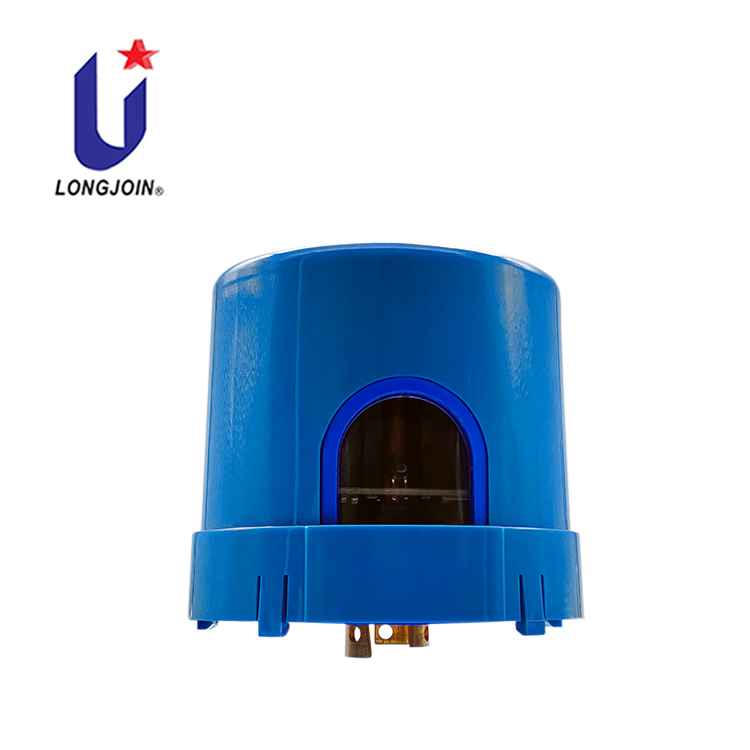

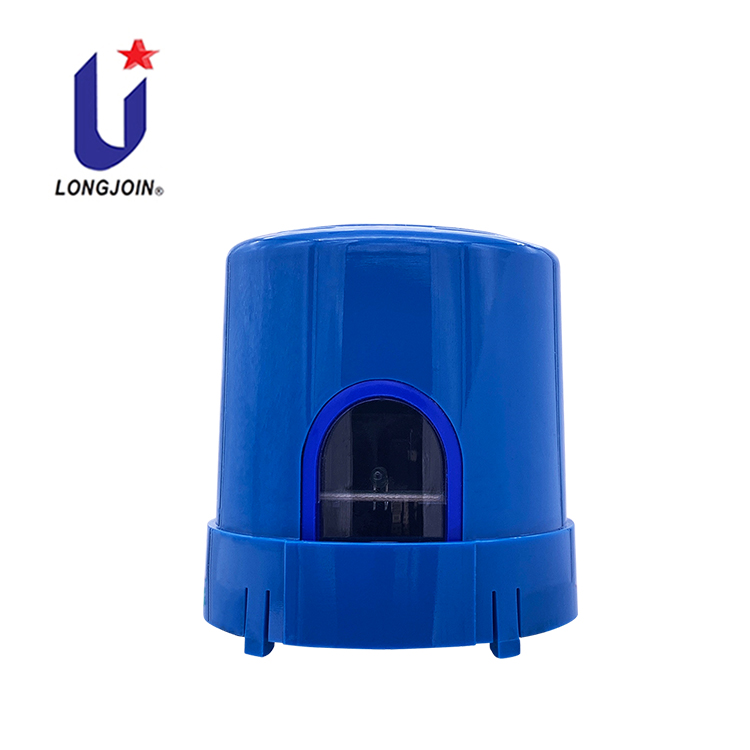

Wireless NB-IOT Intelligent photocell Control JL-245CN

Short Description:

1. Product Model : JL-245CN

2. IP Rating: IP65/IP67

3. Wireless : NB-IOT

4. Dimming Output: 0-10V/ PWM


Product Description

Product Specification

Get Detailed Prices

Product Tags

JL-245CN of intelligent light controller can apply to single control application or system control application. Such as roads, exhibitions, schools, shopping malls, supermarkets, factories, parks and so on. All three models can operate as stand-alone lamp controls with local strategies.



Thus all single-control light controllers JL-245CN above the standard NEMA interface of the luminaire. The internal program of the controller can execute the light control strategy independently. Such as switching, dimming, midnight dimming, light attenuation compensation, metering, abnormal protection and LED status indication.



You can also use JL-245CN and UM Series to compose a light control NB-IOT network ,then Automatically Connected and Monitored.



Feature

1.Convenient mounted way: by the wireless automatic connecting;

2.Remote control: All the operating parameters of the lamp controller can be freely set on the WEB interface.

2.Safe and reliable:Built-in abnormal protection, which can effectively protect the controller to avoid equipment damage.

3.Maintenance efficient:Automatic fault reporting function allows managers to get the fault situation and timely replacement.

3.Green and energy saving:Controller is designed by environmentally friendly low-power device materials, and intelligent control more energy-efficient.



WAN Networking Control Application

JL-245CN





Networking Description

1. JL-245CN automatically connected to the UM9000 through NB-IOT network when power on.

2.UM9000 automatically connected to the cloud server through NB-IOT network.

3. Users can remote control all devices through the computer terminal’s WEB interface.





















UM series are our smart lighting management system

Details as follows

Number

Definition

Application

9000

Smart road light management system

outdoor

7000

Smart park lighting management system

Indoor/outdoor

5000

Smart business lighting management system

Indoor/outdoor

3000

Smart office lighting management system

Outdoor

1000

Smart home lighting management system

Indoor/outdoor




  • Previous:
  • Next:

  • Product Model

    JL-245CN

    Overall Size(mm)

    74*107

    Rated Voltage

    100-277VAC

    Applicable Voltage Range

    85-305VAC

    Power Consumption

    dynamic peak: 10W(4G); static:1.2W

    Dimming output

    0-10VDC; PWM(10KV,1KHZ)

    Transmit Power

    23dBm+/-2dBm

    Wireless

    NB-IOT

    Surge Arrester Protection (MOV)

    IEC61000-4-5, Class A Common mode: 20KV/10KA

    Deferential Model:6KV/3KA

    Loading capacity  9A max
    IP Protection  IP65,IP66,IP67
    Flammability Level  UL94-V0
    Altitude  4000m max
    Material Base material:PBTDome enclosure:PC

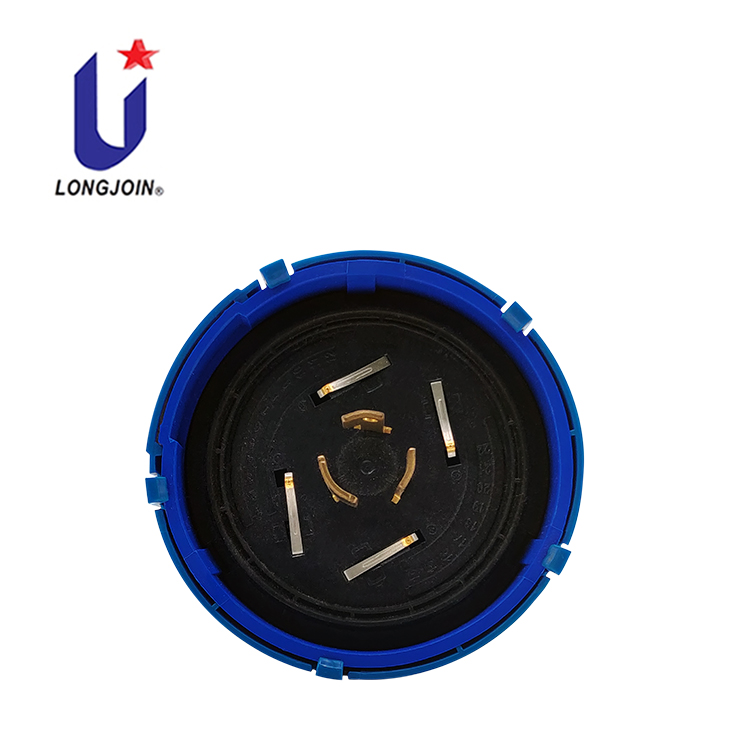

    Interface model  NEMA/ANSI C136.4
    Certification  CE,ROHS,ULFCC,RED

    NB-IOT Model

    Network type

    NB network

    Standard

    B1/B3/B/B5/B8/B20

    B1/B20 in development

    Antenna Quantity

    1

    Communication Distance(Point-Point)

    Min 800m (Visual distance)

    Antenna Type

    Spring antenna

    Frequency Tolerance

    <±40ppm

    Transmit Power

    23dBm+/-2dBm

    Throughput

    250kbps(downstream)

    16.7kbps(upstream)
