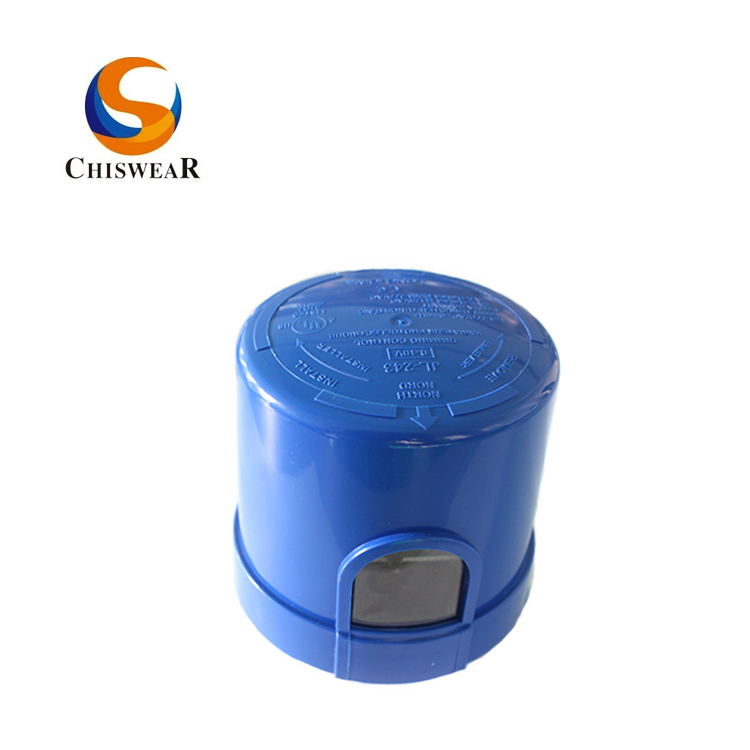

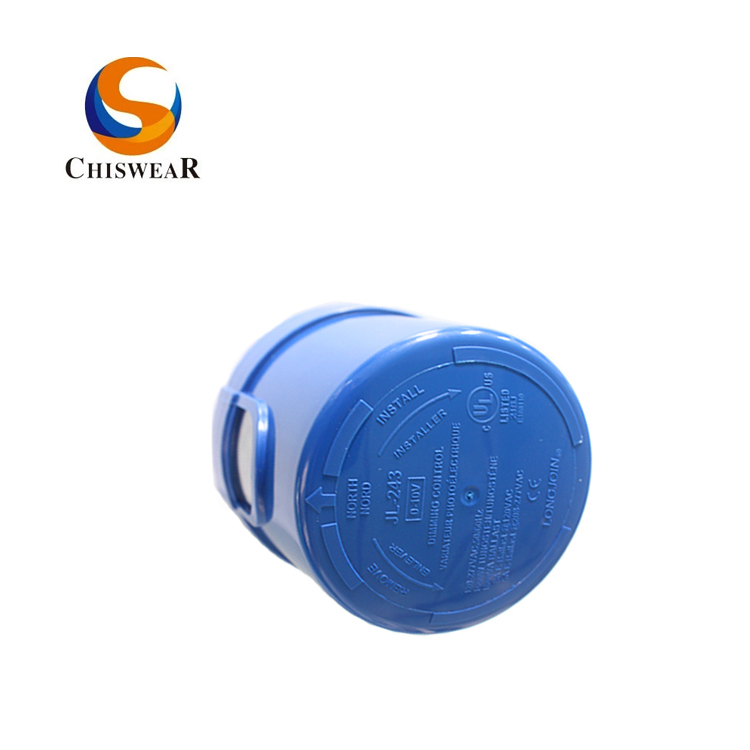

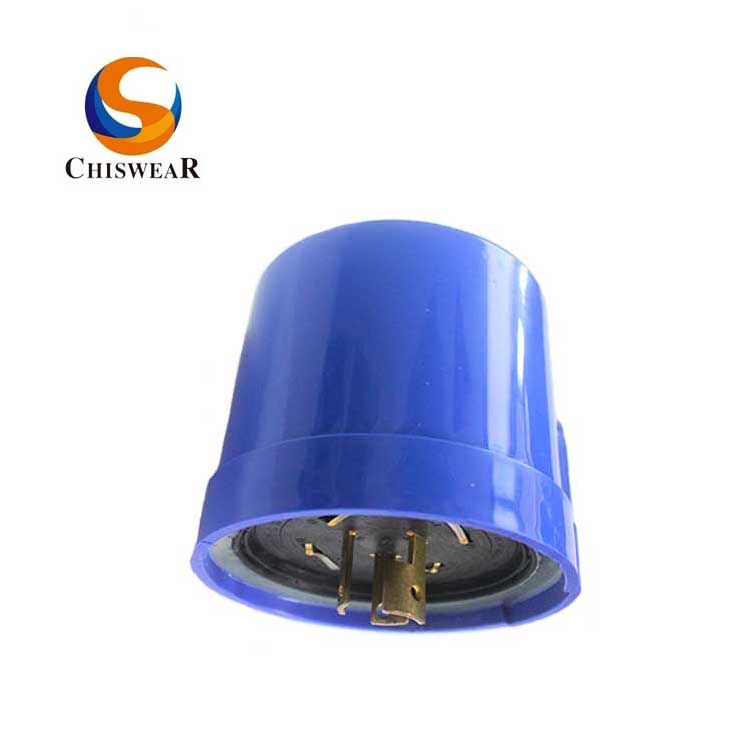

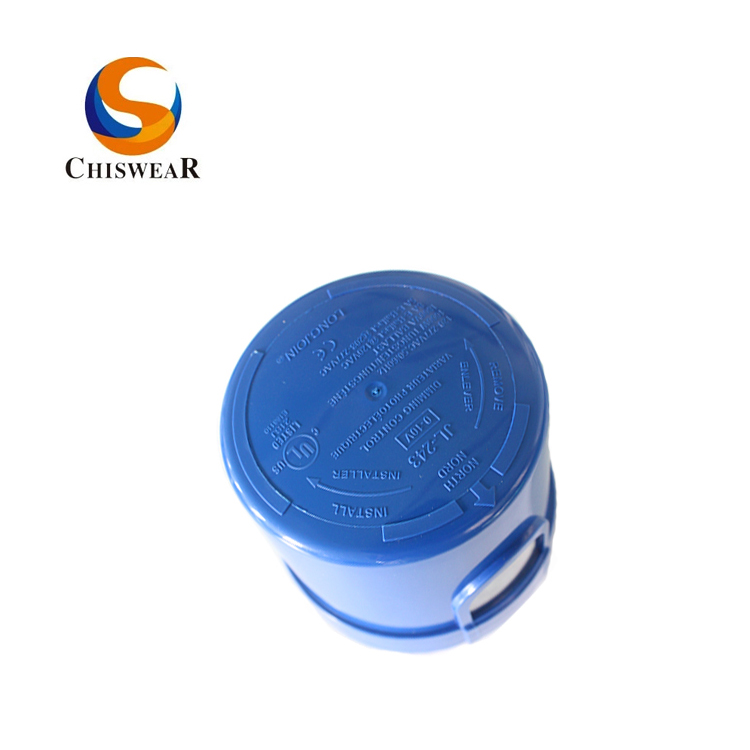

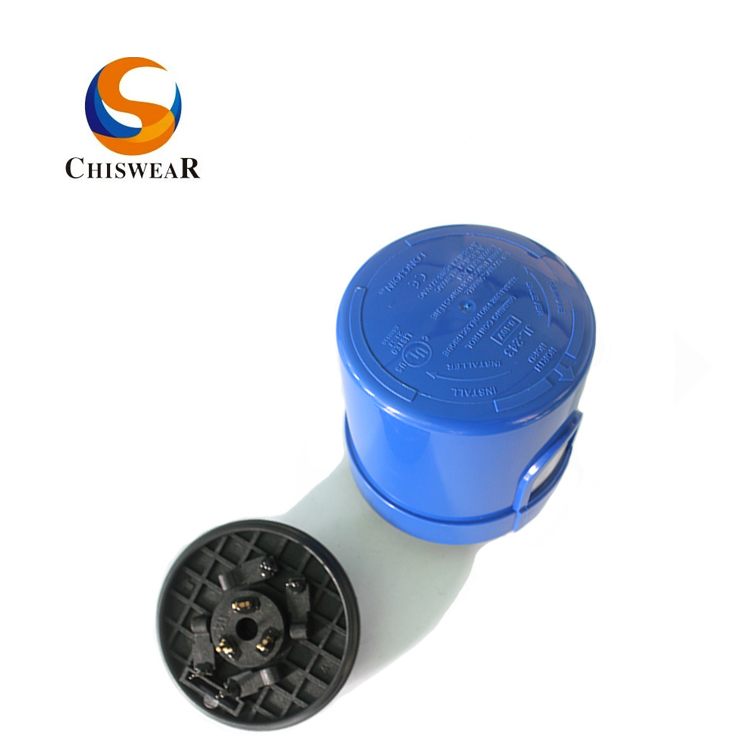

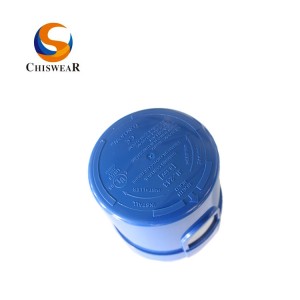

Fail on Model and Midnight Dimming JL-243C NEMA 7 PIN Photocontrol

Short Description:

1. ANSI C136.41-2013 Twist lock

2. 0-10V Dimming mode

3. Midnight Dimming

4. Fail on mode

5. LED Decay Compensation Featured

6. 40KA Surge Arrester Built-in


Product Description

Product Specification

Get Detailed Prices

Product Tags

The dimming photocontroller JL-243 series is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.

Feature

1.Built in Surge Arrester (MOV, 640 Joule / 40000 Amp).

2. JL-243C provided application electrical lighting control Device Conditions under low Voltage operation power environment.

3.Preset 3-5 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time.

4.This Product twist lock terminals meeting the requirements of ANSI C136.41-2013 and the Standard for Plug-In, Locking Type Photocontrols for Use with Area Lighting UL773.

Tips.

Related to JL-24 Series dimming photocontroller below description  of Feature and performance table.

        Model

    Function

JL-241C

JL-242C

JL-243C

 Constant on/off Dimming

Y

Y

Y

Midnight Dimming

X

Y

Y

LED Decay Compensation

X

X

Y




  • Previous:
  • Next:

  • Product Model

    JL-243C

    Rated Voltage

    110-277VAC

    Applicable Voltage Range

    90-305VAC

     Rated Frequency

    50/60Hz

    Power Consumption

    1.2W average

    Typical Surge Protection

    640 Joule / 40000 Amp

    On/Off Level

    50lx

    Ambient Temp.

    -40℃ ~ +70℃

    Rated Loading

    1000W Tungsten, 1800VA Ballast

    Related Humidity

    99%

    Overall Size

    84(Dia.) x 66mm

    Weight Approx.

    200 grs
