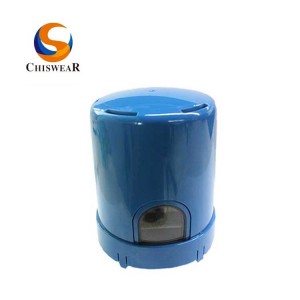

JL-246CG Smart Remote Wireless Photocell Control

Short Description:

1. Product Model : JL-246CG

2. IP Rating: IP65/IP67

3. Wireless : Zigbee

4. Dimming output: 0-10V/ PWM


Product Description

Product Specification

Matching Kits

Get Detailed Prices

Product Tags

JL-245 & JL-246 series of intelligent light controller can apply to single control application or system control application. Such as roads, exhibitions, schools, shopping malls, supermarkets, factories, parks and so on. All three models can operate as stand-alone lamp controls with local strategies.

Thus all single-control light controllers JL-245C above the standard NEMA interface of the luminaire. The internal program of the controller can execute the light control strategy independently. Such as switching, dimming, midnight dimming, light attenuation compensation, metering, abnormal protection and LED status indication.

You can also use M JL-245C and a JL-246CW or JL-246CG to compose a light control Zigbee network , then use N *Zigbee network to compose a larger network.

Feature

1.Convenient  mounted way:  by the wireless automatic connecting;

2.Remote control: All the operating parameters of the lamp controller can be freely set on the WEB interface.

2.Safe and reliable:Built-in abnormal protection, which can effectively protect the controller to avoid equipment damage.

3.Maintenance efficient:Automatic fault reporting function allows managers to get the fault situation and timely replacement.

3.Green and energy saving:Controller is designed by environmentally friendly low-power device materials, and intelligent control more energy-efficient.

WAN Networking Control Application

Master controller: JL-246CG

Auxiliary controller: JL-245C

245C smart photocell

Application Scenes for WAN Networking Control

Networking Description

1. JL-245C automatically connected to the JL-246CG through ZigBee network when power on.

2.M JL-245C and a JL-246CG composed of a Zigbee network,N ZigBee network composed of the entire lighting control network,M suggested≤50.

3.N JL-246CW automatically connected to the cloud server through 2G/3G/4G/NB-IOT/LoRa/Sigfox network.

4. Users can remote control all devices through the computer terminal’s WEB

interface.


  • Previous:
  • Next:

  • Product Model JL-246CG
    Overall Size(mm) 74*107
    Rated Voltage 100-277VAC
    Applicable Voltage Range 85-305VAC
    Power Consumption dynamic peak: 10W(4G); static:1.2W
    Dimming output 0-10VDC; PWM(10KV,1KHZ)
    Wireless UP link: 2G/3G/4G/NB-IOT/LoRa/Sigfox;
    dawn link: Zigbee
    Surge Arrester Protection (MOV) IEC61000-4-5, Class A Common mode: 20KV/10KADeferential Model:7KV/3.5KA
    Loading capacity 9A max
    Spectral Acquisition Range 350~1100nm;
    IP Protection IP65,IP66,IP67
    Flammability Level UL94-V0
    Altitude 4000m max
    Material Base material:PBTDome enclosure:PC
    Interface model NEMA/ANSI C136.41
    Certification CE,ROHS,ULFCC,RED

    Zigbee mode

    Network type

    MESH

    Standard

    IEEE802.15.4

    Communication Distance(Point-Point)

    Min 800m (Visual distance)

    Modulation

    O-QPSK

    Frequency

    2.4Ghz(2400—2483.5)

    Antenna Type

    SMT Ceramic

    Frequency Tolerance

    <±40ppm

    Transmit Power

    18dBm~20dBm

    Throughput

    Max 250kbps

    Channel Number

    16

    Antenna Quantity

    1

    2G/3G4G

    Standard

    IEEE802.15.4

    Communication Distance(Point-Point)

    Min 800m (Visual distance)

    Modulation

    O-QPSK

    Frequency

    LTE-TDD Quad-band Band 38/39/40/41;
    LTE-FDD Tri-band Band 1/3/8;
    TD-SCDMA Dual-band Band 34/39;
    UMTS Dual-band Band 1/8;
    GSM Dual-band B3/B8;

    Antenna Type

    FPC

    Throughput

    LTE:
    FDD: 150Mbps(DL), 50Mbps(UL)
    TDD: 150Mbps(DL), 50Mbps(UL)
    TD-SCDMA:4.2Mbps(DL), 2.2Mbps(UL)
    GGPRS: 85.6kbps(DL), 85.6kbps(UL)

    Channel Number

    >=44

    Antenna Quantity

    1
